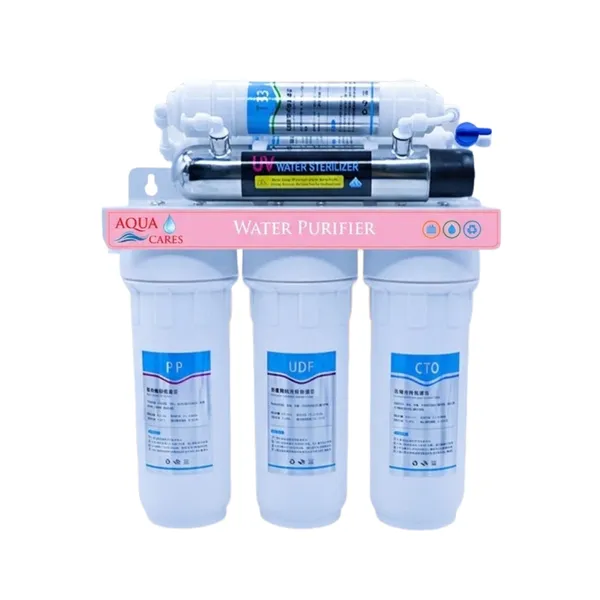

6-Stage Ultrafiltration (UF) Water Purifier with UV Sterilizer
Compact six-stage under-sink water purifier with PP, UDF, CTO, 0.01-micron UF, T33 post-carbon and final 6 W UV treatment. Choose All White filter housings or All Transparent filter housings. Approximately 2–4 L/min; electricity required for UV lamp.
6-Stage UF Filtration with Final UV Treatment
A compact under-sink filtration system designed for ambient drinking and cooking water in homes, apartments and offices. Filtration operates using normal inlet-water pressure; electricity is required for the final 6 W UV sterilizer. Choose All White housings (most popular) or All Transparent housings.
Six-Stage Filtration Process
- PP Sediment Filter: Captures sediment such as sand, silt and rust to protect downstream filters.
- UDF Granular Activated Carbon: Helps reduce residual chlorine, unwanted tastes and odours.
- CTO Carbon Block: Provides additional carbon filtration to help reduce chlorine, tastes and odours.
- UF Ultrafiltration Membrane: A 0.01-micron membrane provides fine physical filtration while allowing naturally occurring dissolved minerals to remain in the water.
- T33 Post-Carbon Filter: Helps improve taste and odour before the UV stage.
- 6 W UV Sterilizer: Installed after T33, this final stage uses ultraviolet light to help inactivate microorganisms in passing water. It includes a 304 stainless-steel chamber, quartz tube and UV lamp. Performance depends on water clarity, flow rate, lamp condition and a clean quartz tube.
Recommended Filter Replacement Schedule
| Filter | Recommended Replacement Interval |
|---|---|
| PP Sediment Filter | 3–6 months |
| UDF Granular Activated Carbon | 6 months |
| CTO Carbon Block | 6 months |
| UF Ultrafiltration Membrane | 12 months |
| UV Lamp | 6–12 months |
| T33 Post-Carbon Filter | 6 months |
Replacement intervals vary depending on incoming water quality and daily usage.
Note: This product is designed primarily for city water. As an ultrafiltration system, it does not reduce dissolved salts or TDS in the same way as a reverse-osmosis system. Flush new filters ~30 minutes thoroughly before first use.
Never look directly at an operating UV lamp or expose skin to its light. Inspect and clean the quartz tube according to the equipment instructions.
Warranty: 1-year warranty against manufacturing defects.
| Model | INV-UF-06-UV-SERIES |
|---|---|
| បច្ចេកវិទ្យាចម្រោះ | ចម្រោះដោយភ្នាស UF |
| ប្រភេទការដំឡើង | ក្រោមអាងលាងចាន |
| តម្រូវការអគ្គិសនី | ត្រូវការ |
| ចំនួនដំណាក់កាល | 6 ដំណាក់កាល |
| ការប្រើប្រាស់ | ទឹកសម្រាប់ចម្អិនអាហារ, ទឹកសម្រាប់ផឹក, ផ្ទះ |
| សីតុណ្ហភាពទឹក | សីតុណ្ហភាពធម្មតា |
| Filter Configuration | PP + UDF + CTO + UF + T33 + 6 W UV |
| Filtration Accuracy | 0.01 micron |
| Flow Rate | Approximately 2–4 L/min |
| Operating Pressure | 1–4 bar (0.1–0.4 MPa) |
| Product Dimensions | 365 × 130 × 420 mm (W × D × H) |
| Approximate Gross Weight | 4.5 kg per unit |
| Recommended Water Source | City water |
| Wastewater Discharge | No |
| សំបកតម្រង | ថ្លាទាំងអស់, ពណ៌សទាំងអស់ |
| UV Lamp Power | 6 W |
| UV Chamber Material | 304 stainless steel |
| UV Lamp Sleeve | Quartz tube |
| Rated Power | 6 W |
| Electrical Requirements | Electricity required for UV |
UF-06-UV water purifier in the selected housing option, with PP, UDF, CTO, UF and T33 filters and a 6 W UV sterilizer.
- 5 m PE water pipe
- Filter-housing wrench
- Connector
- 3-way ball valve
- Purified-water faucet
- Installation fittings
