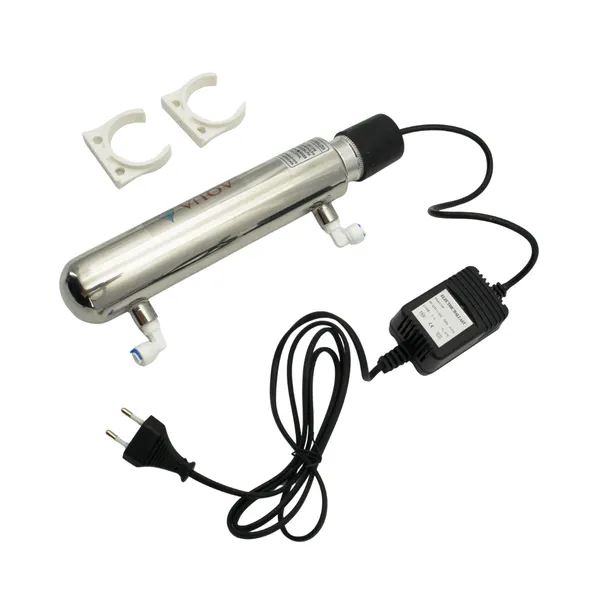

INV-UV-6W 6W: Stainless-steel UV water treatment set with power supply, quick-connect fittings and two mounting clips

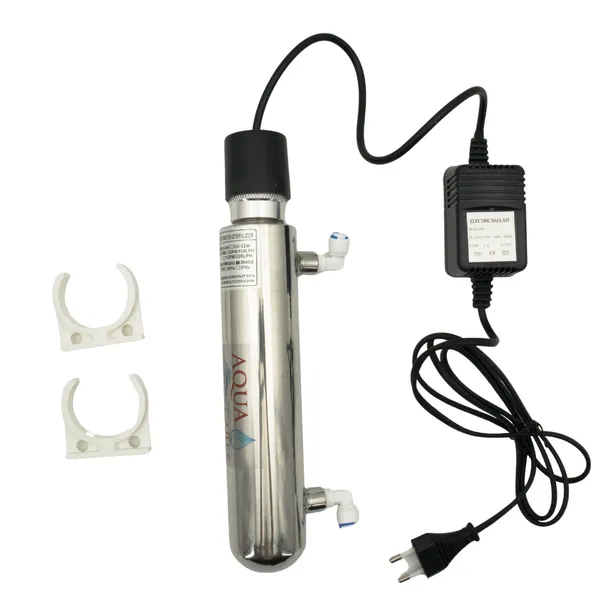

INV-UV-6W 6W: UV treatment chamber beside its ballast power supply and two mounting clips
INV-UV-6W 6W: UV set components with stainless-steel chamber, lamp, protective sleeve, power supply and mounting clips

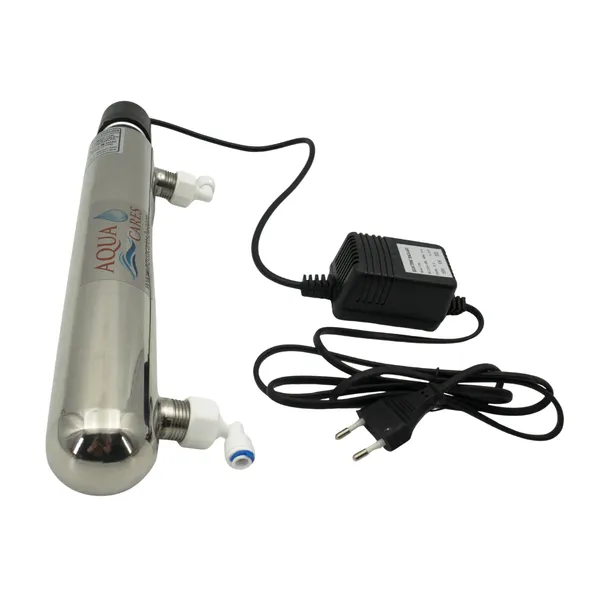

INV-UV-12W 12W: Stainless-steel UV treatment chamber with inlet and outlet fittings and ballast power supply

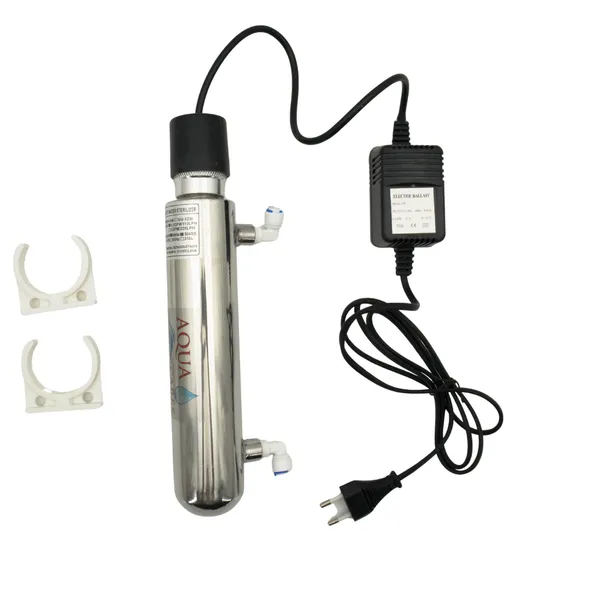

INV-UV-12W 12W: UV water treatment chamber with two mounting clips and ballast power supply
INV-UV-6W 6W: Stainless-steel UV water treatment set with power supply, quick-connect fittings and two mounting clips
INV-UV-6W 6W: UV treatment chamber beside its ballast power supply and two mounting clips
INV-UV-6W 6W: UV set components with stainless-steel chamber, lamp, protective sleeve, power supply and mounting clips
INV-UV-12W 12W: Stainless-steel UV treatment chamber with inlet and outlet fittings and ballast power supply
INV-UV-12W 12W: UV water treatment chamber with two mounting clips and ballast power supply
Front view of the grey INV-LS-31-GRO standing RO water purifier
Grey Freestanding RO Water Purifier with Hot, Cold & Ambient Water
Back to products
PRT-UV6W 6W: T5 UV replacement lamp with white end caps and four pins at one end
UV T5 Lamp
Aqua Cares

UV Set for Water Purifier

UV treatment set for water purifiers with a 304 stainless-steel chamber and matching lamp, quartz sleeve and ballast. Choose 6W (1.8 L/min) or 12W (3.7 L/min).

Contact for Price & Availability
Add to quote
TELEGRAM CHAT
SKU: INV-UV-SERIES Category:
Overview

Compact UV Treatment for Your Water Purifier

The INV-UV-SERIES adds an ultraviolet treatment stage to a compatible water-purification system. Choose the 6W or 12W set to match your installation. Each set combines a stainless-steel chamber, quartz sleeve, UV lamp and matching ballast power supply.

Features

  • 304 stainless-steel treatment chamber
  • Replaceable T5 UV lamp protected by a quartz glass sleeve
  • UV treatment without adding disinfectant chemicals
  • Compact design with two mounting clips
  • 6W and 12W options for different system requirements

Installation and Care

Disconnect the power and isolate the water supply before servicing. Never look at an operating UV lamp or expose skin to its light. Keep electrical components dry. Inspect and clean the quartz sleeve according to the equipment instructions, and replace the lamp on the recommended service schedule. Avoid frequent switching on and off.

Specifications
SeriesINV-UV-SERIES
Treatment TechnologyUltraviolet (UV)
Chamber Material304 stainless steel
Lamp TypeT5 UV lamp
Maximum Operating Pressure10 bar
Rated Lamp Life8,000 hours
Lamp Failure IndicatorNot included
6W Flow Rate1.8 L/min
12W Flow Rate3.7 L/min
6W Connections¼-inch female thread with quick connectors for ¼-inch tubing
12W Connections½-inch male thread
6W Overall Length270 mm
12W Overall Length310 mm
Chamber Diameter50.8 mm
Power230 V AC, 50 Hz
In the Box

INV-UV-6W 6W: UV set components with stainless-steel chamber, lamp, protective sleeve, power supply and mounting clips

UV set in the selected wattage: INV-UV-6W (6W) or INV-UV-12W (12W). Includes 1 stainless-steel chamber, 1 quartz sleeve, 1 UV lamp, 1 ballast power supply, 2 mounting clips and 1 sealing ring. The 6W set has quick connectors for ¼-inch tubing; the 12W chamber has ½-inch male-thread connections. Image shows the 6W set components.
